Double Iveco Overhaul

Maintenance Complete on Ivecos

This boat originally came out to get oil leaks checked on the gearboxes. While the boat was underway oil was leaking out of the gearbox and leaking down into the coupling, spraying oil all through the bilge. While the boat was out for various repairs, we removed both shaft couplings to access the gearboxes and pulled the back ends. We quickly found that the sealing plates were incorrectly installed and sealant was used where there shouldn't be. All the coolers were pulled from both engines and reconditioned before being painted and plumbed back into the system.

 Oil Leak Coupling

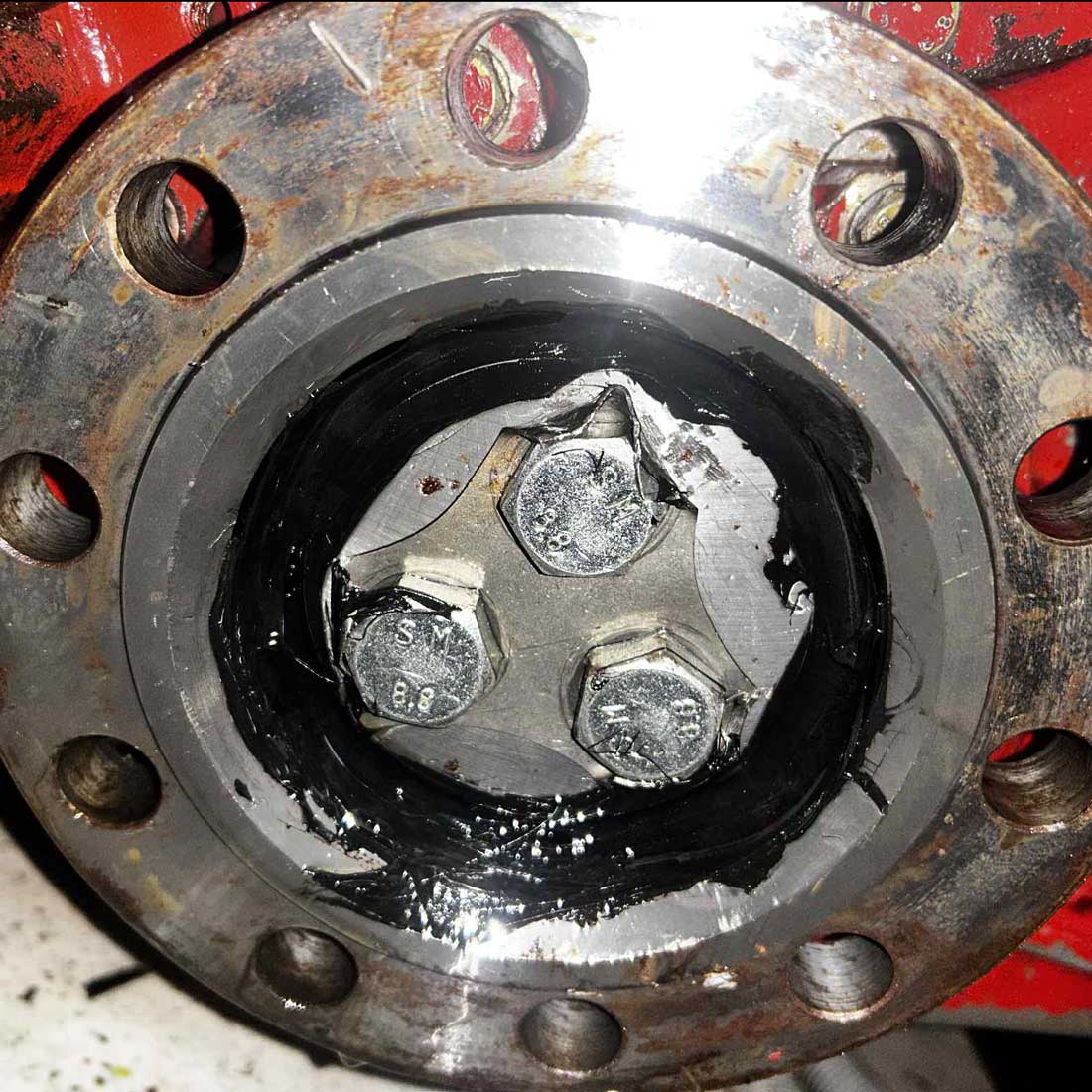

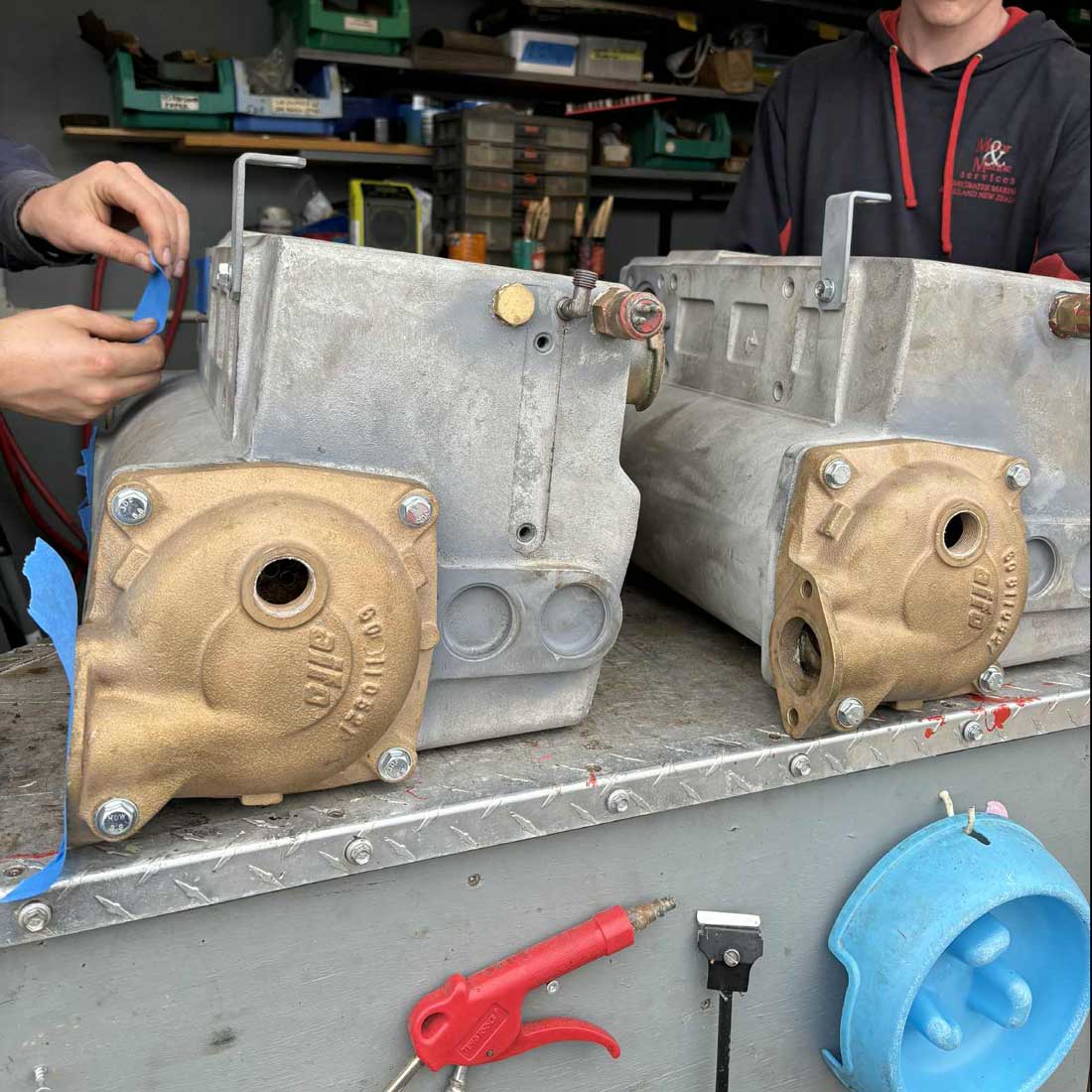

Sealant In Gearbox Reconditioned Coolers

More Problems Discovered

As the job went on we noticed more and more issues, the intake manifold was blowing soot from multiple gaskets on 3 out of the 4 manifolds and it was decided we would remove all 4 manifolds and replace all gaskets as a preventative precaution. Both aftercoolers were removed at the end as part of the overhaul of all the coolers. The boat was launched and we had technicians on board as it was driven back to the viaduct to check for any further issues.

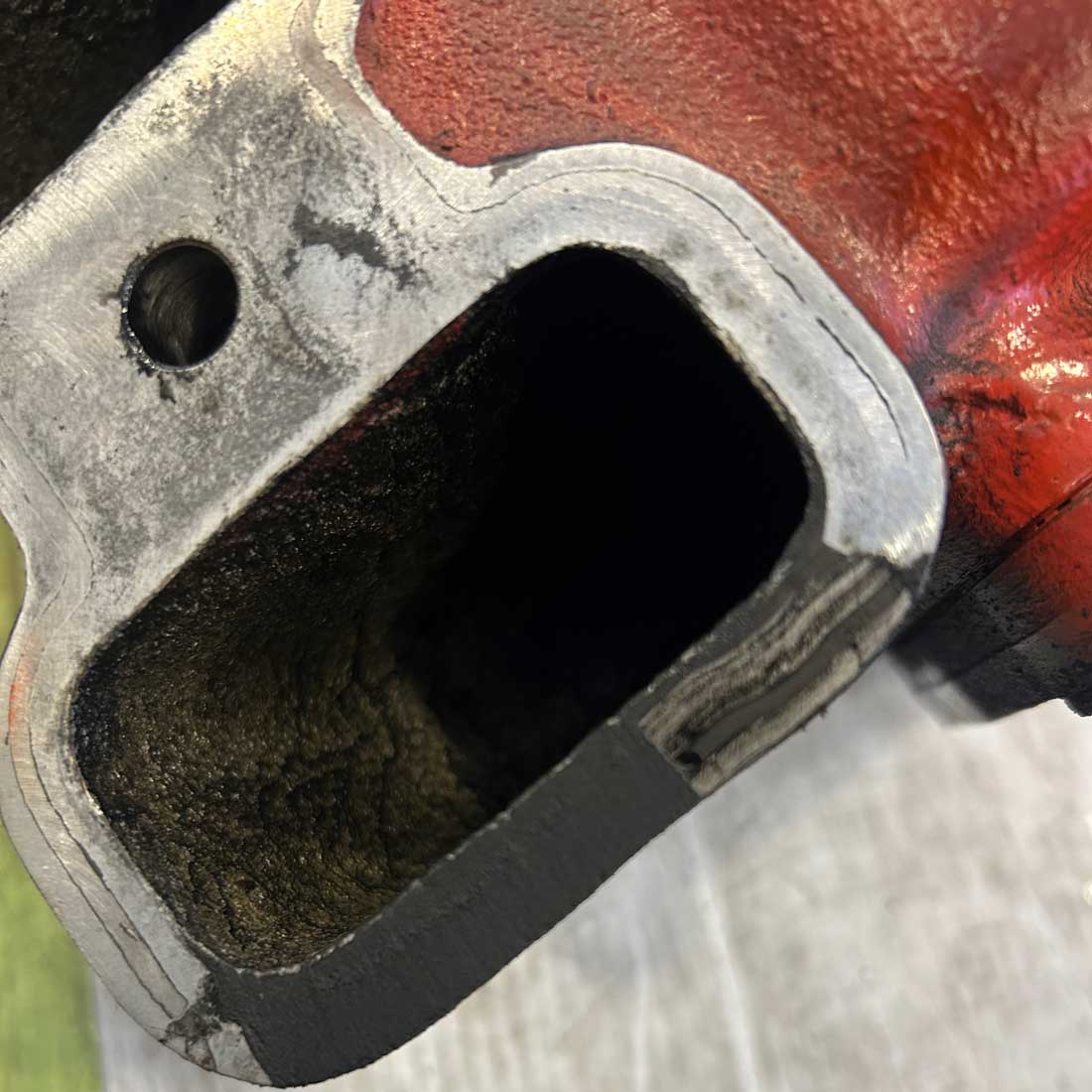

Soot On Manifold

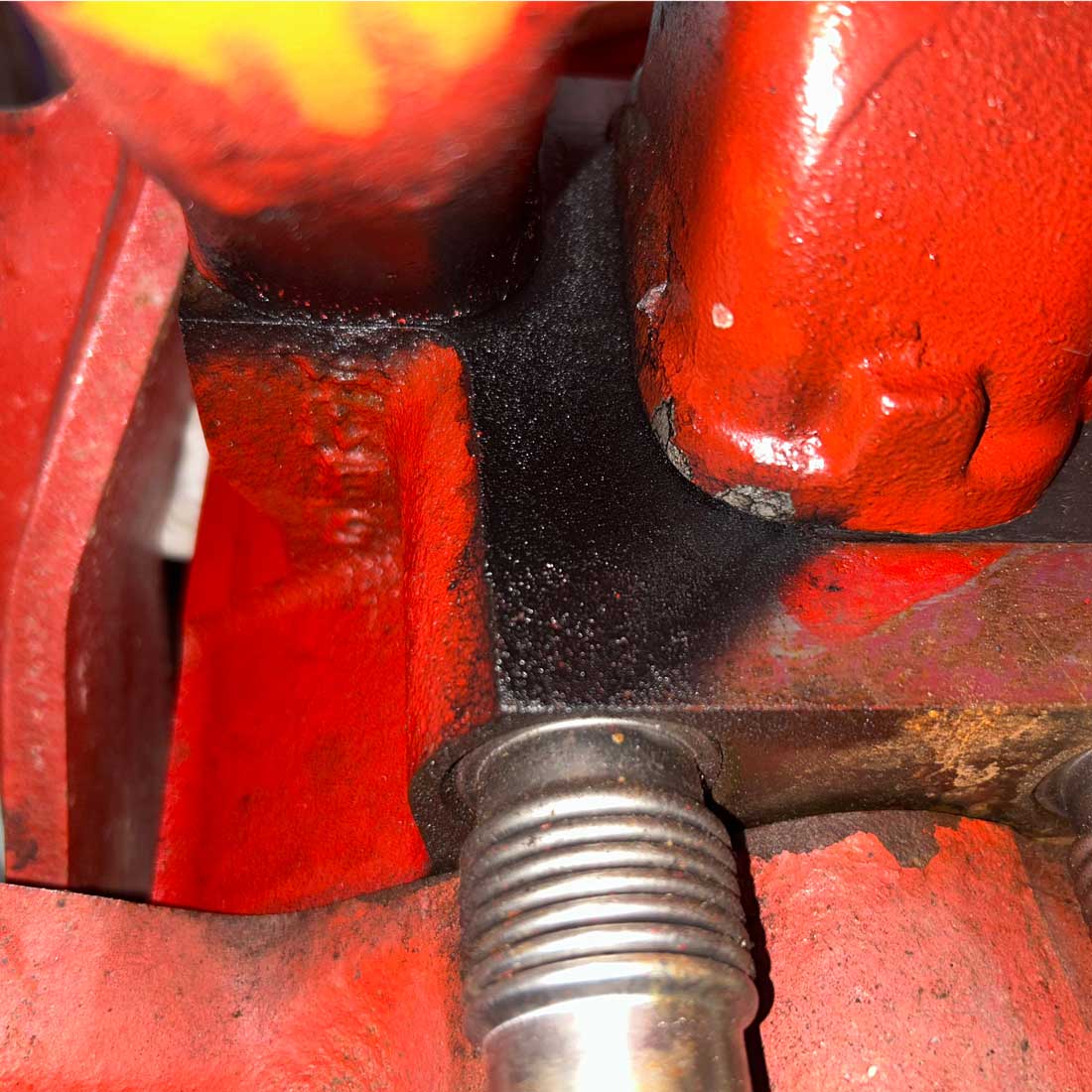

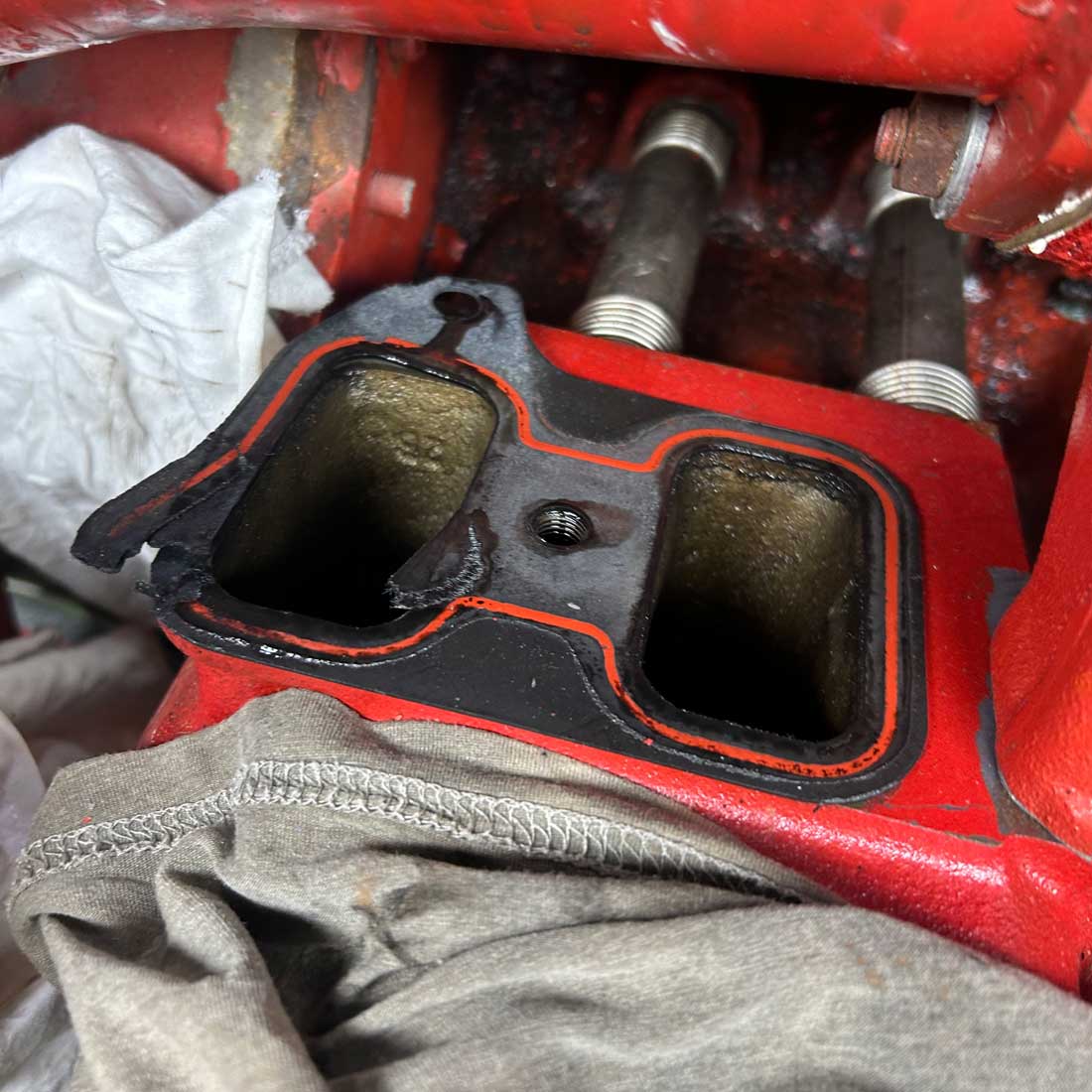

Intake Leak Intake Manifold_Gaskets_Replacing

Final Checks

The vessel was then lifted back into the water and we had two engineers on board to check over its operation on the way back to its marina berth.

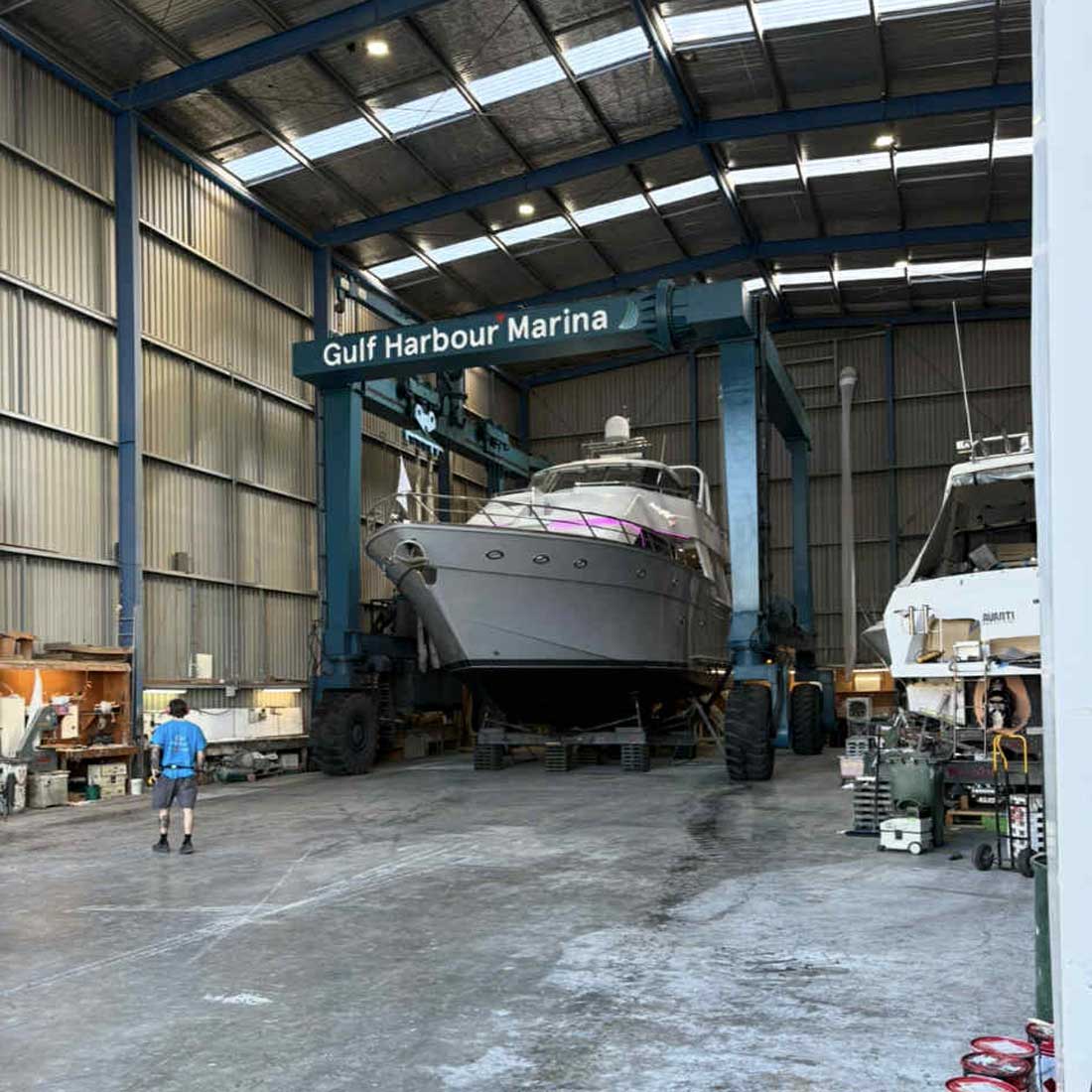

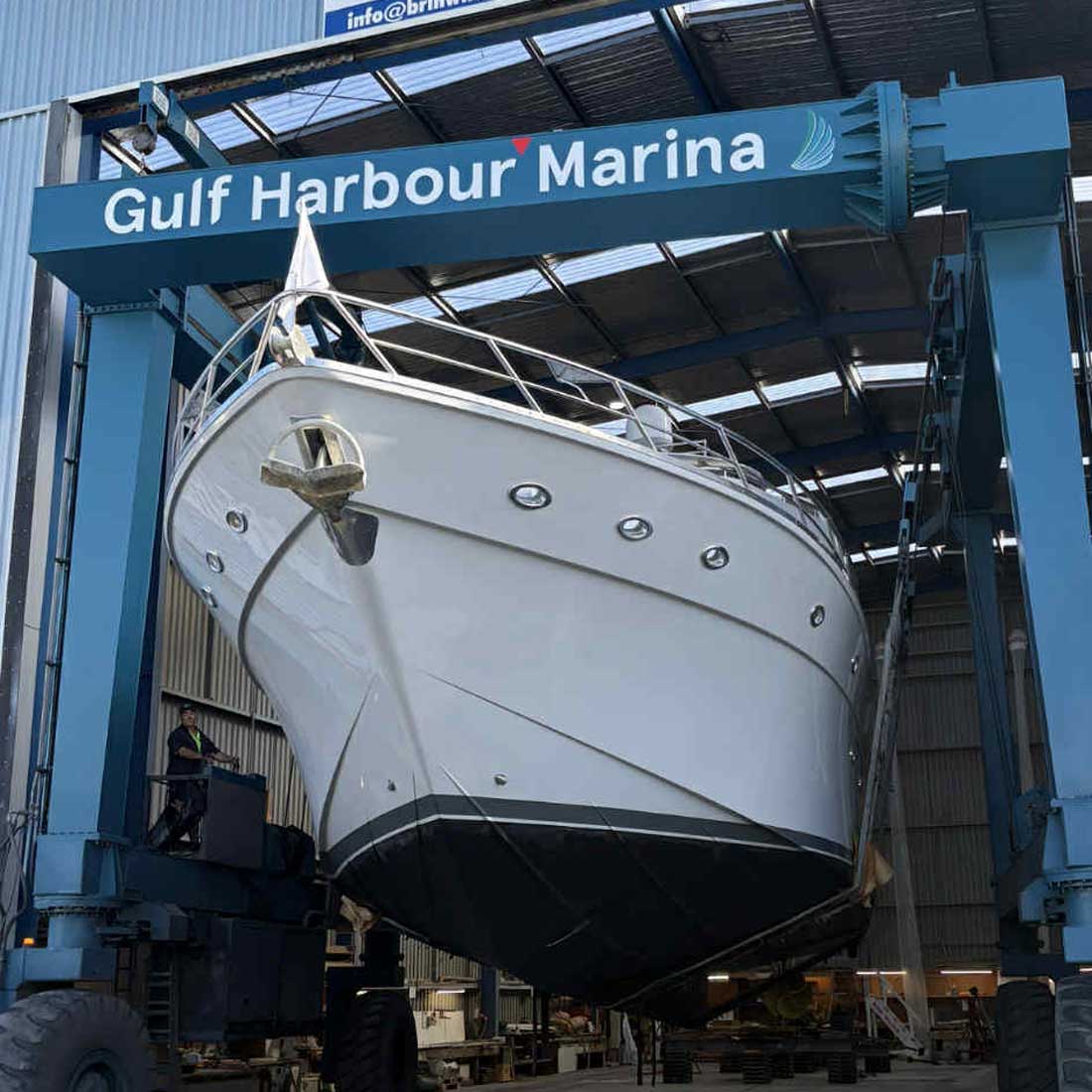

 Exhaust Leak Repair

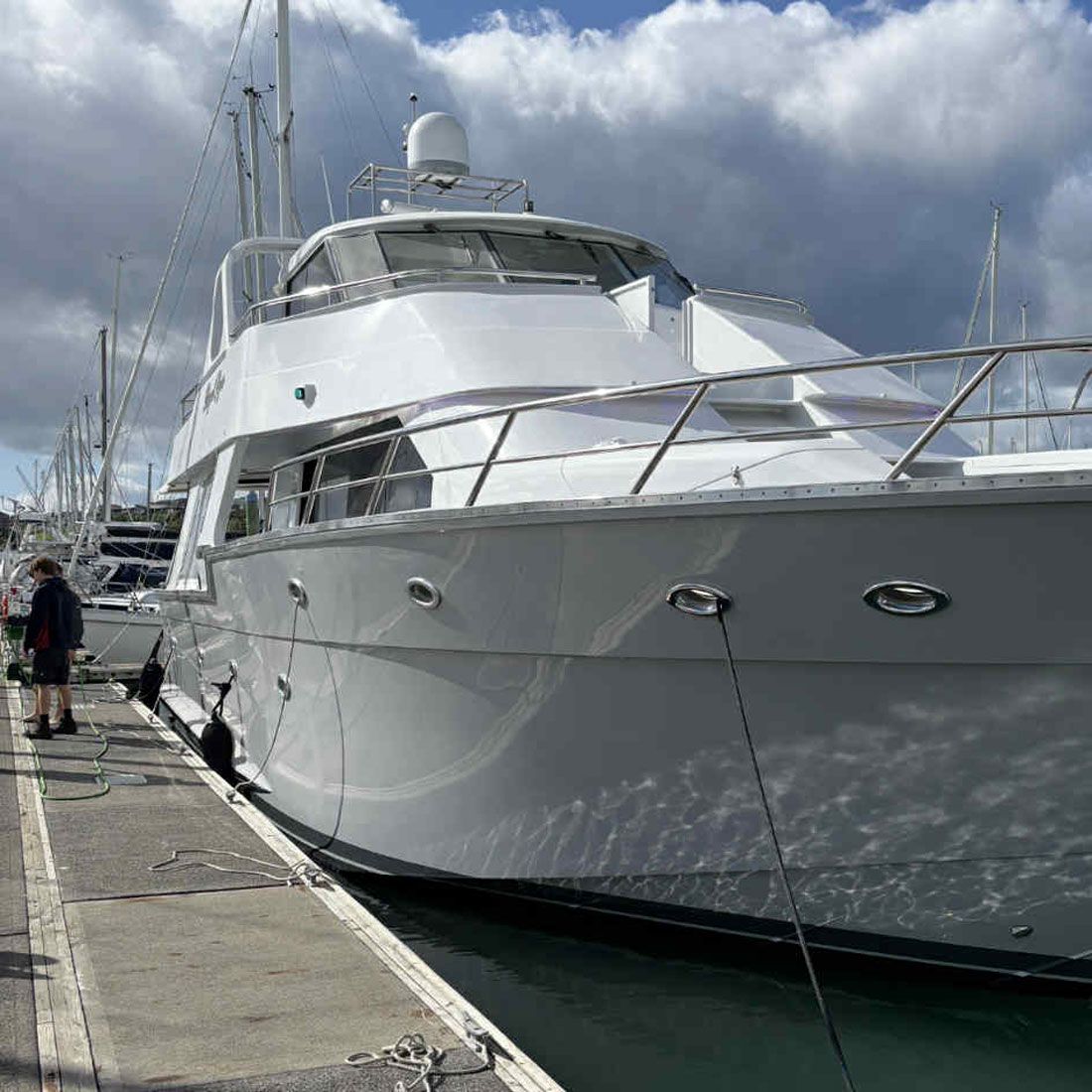

Exhaust Leak RepairLaunched After Work
